Smart tech shops

How to include technology to improve retail shops in mall

BeginnerWork in progress6
Smart tech shops

Things used in this project

Hardware components

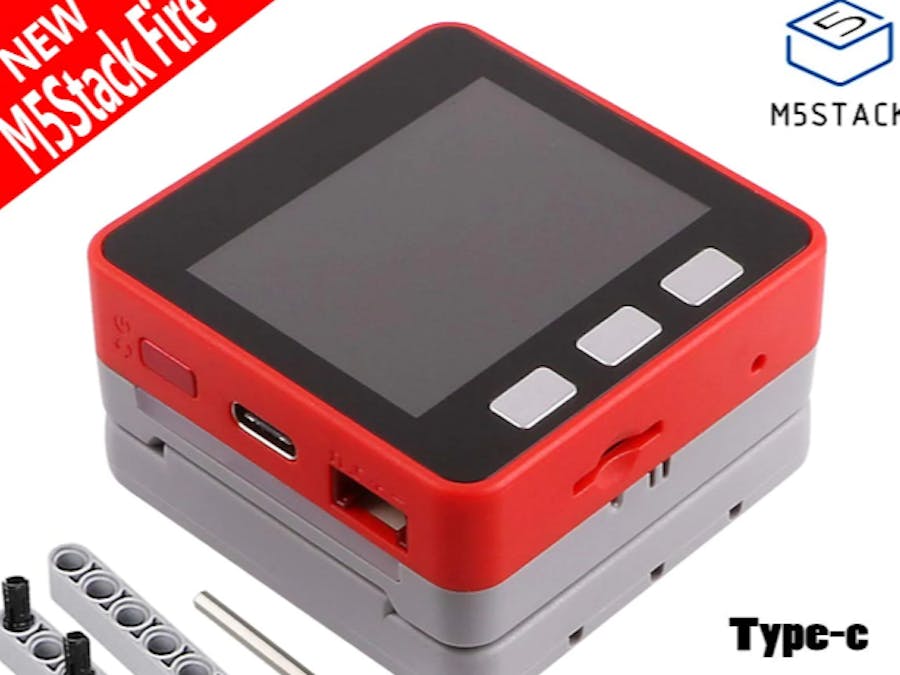

M5Stack FIRE IoT Development Kit (PSRAM 2.0)
M5Stack FIRE IoT Development Kit (PSRAM 2.0)
Used to run our smart systems for tech shops improved safety and conduciveness
×4
Time-of-Flight (ToF) VL53L0X Laser Ranging Unit (MCP4725/)
M5Stack Time-of-Flight (ToF) VL53L0X Laser Ranging Unit (MCP4725/)
Measures distance with light sensors. helps with anti-theft system where it ensures display set item is not too far from its original position
×1
ENV II Unit with Temperature Humidity Pressure Sensor(SHT30+BMP280)
M5Stack ENV II Unit with Temperature Humidity Pressure Sensor(SHT30+BMP280)
Temperature, humidity and air pressure sensor. helps with smart temperature regulator of store to adjust internal temperature of store according to outside temperature.
×1
Mini RFID Unit RC522 Module Sensor
M5Stack Mini RFID Unit RC522 Module Sensor
ensures correct card is used when opening store
×1
I2C Hub 1 to 6 Expansion TCA9548A Module
M5Stack I2C Hub 1 to 6 Expansion TCA9548A Module
links the units to 1 port, Port A
×1
Connector Grove to SERVO (5pcs)
M5Stack Connector Grove to SERVO (5pcs)
used to connect servo motor to a m5stack
×1
MAKERFACTORY Robot servo SERVO MF-05
MAKERFACTORY Robot servo SERVO MF-05
used to open the shutters/doors of store when the correct id card taps on the RFID
×1

Story

Read more
