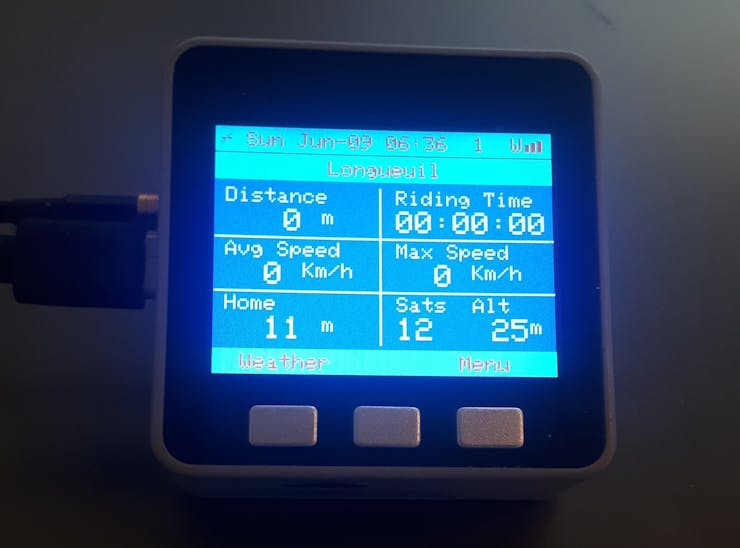

M5Stack GPS Logger

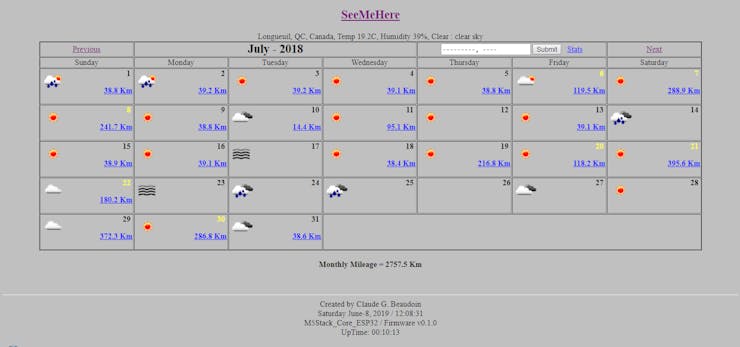

GPS logger that stores your location into a GPX file with a back end web server to view daily rides, add comments and multi-media files.

AdvancedFull instructions provided1 hour2,491
M5Stack GPS Logger

Things used in this project

Hardware components

ESP32 GREY Development Kit with 9Axis Sensor
M5Stack ESP32 GREY Development Kit with 9Axis Sensor
You could also use the basic black model.
×1
GPS Module with Internal & External Antenna (NEO-M8N)
M5Stack GPS Module with Internal & External Antenna (NEO-M8N)
×1
ESP32 Dev Board
Required if building without M5Stack
×1
GPS Module
Required if building without M5Stack
×1
Adafruit MicroSD card breakout board
Required if building without M5Stack
×1
Resistor 221 ohm
Resistor 221 ohm
Required if building without M5Stack
×1
General Purpose Transistor NPN
General Purpose Transistor NPN
Required if building without M5Stack (I use a 2N2222)
×1
Linear Regulator (7805)
Linear Regulator (7805)
Required if building without M5Stack
×1
Capacitor 100 µF
Capacitor 100 µF
Required if building without M5Stack
×1
Capacitor 10 µF
Capacitor 10 µF
Required if building without M5Stack
×1
Resistor 10k ohm
Resistor 10k ohm
Required if building without M5Stack
×1
Buzzer, Piezo
Buzzer, Piezo
Required if building without M5Stack
×1
5 mm LED: Red
5 mm LED: Red
Required if building without M5Stack
×1

Software apps and online services

dweet.io
Google Maps API
OpenWeatherMap API Key

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Required if building without M5Stack

Story

Read more

Schematics

Fritzing File

Contains breadboard and completed PCB

Breadboard of ESP32 Dev Module

Code

ESP32_Tracker

GitHub Source Code Archive
