How it works (Watch Video for more details)
Read moreAs society became increasingly focused on convenience and time-saving, the demand for vending machines that sold a wider range of goods, including food and beverages, grew. Today, vending machines can be found in a variety of locations, including shopping malls, airports, and office buildings, and they offer a convenient way for people to purchase daily necessities without having to wait in line or make a special trip to a store.

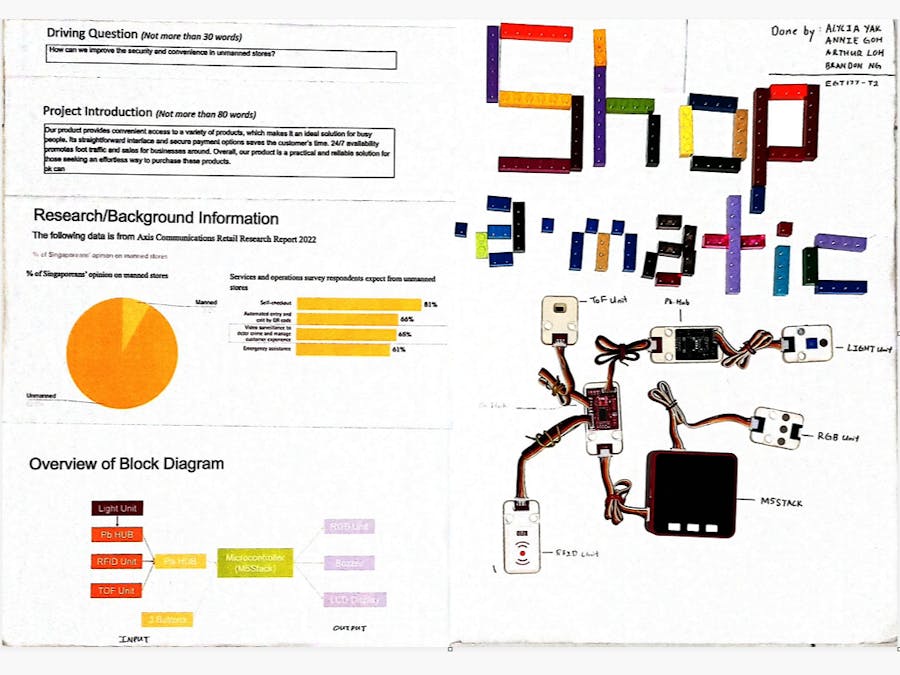

Driving QuestionsHow can we improve the security and convenience in unmanned stores?
Project IntroductionOur product provides convenient access to a variety of products, which makes it an ideal solution for busy people. Its straightforward interface and secure payment options save the customer time. 24/7 availability promotes foot traffic and sales for businesses around. Overall, our product is a practical and reliable solution for those seeking an effortless way to purchase these products
Research/Background InformationData from Axis Communications Retail Research Report 2022
If there are stocks for the item sold:
- Press button B on m5stack to start purchasing process
- On the order page, press buttons A or C to increase or decrease the number of items to be purchased
- From the order page, press button B to proceed to the payment stage
- To go back to the order page from the payment stage, let the countdown timer run out
- Scan card on RFID unit to make payment
- Open the door to get the paid items
If there are no stocks for the item sold:
- M5stack screen will show "OUT OF STOCK"
- Customers will not be able to navigate through the m5stack
Security aspects:
If customers have not paid and try to open the door to get the item out
- M5stack will display "SECURITY BREACH"
- Buzzer to sound a loud sound
Flowchart
on start flowchart
on button b pressed flowchart
main flowchart
breach flowchart
out flowchart
order flowchart
payment flowchart
thanks flowchart
restock flowchart
Automated doors controlled by servo motor
- increase security as customers can only open the door after they pay for an item
Reason for features not being in prototype yet
- lacks the power(energy) to operate everything connected to the m5stack
Usage of MQTT
- to publish and subscribe to stocks
- to publish transaction
- to publish stock history
Reason for features not being in prototype yet
- paid service
